ADG42

Advanced Data Gateway

Advanced Data Gateway

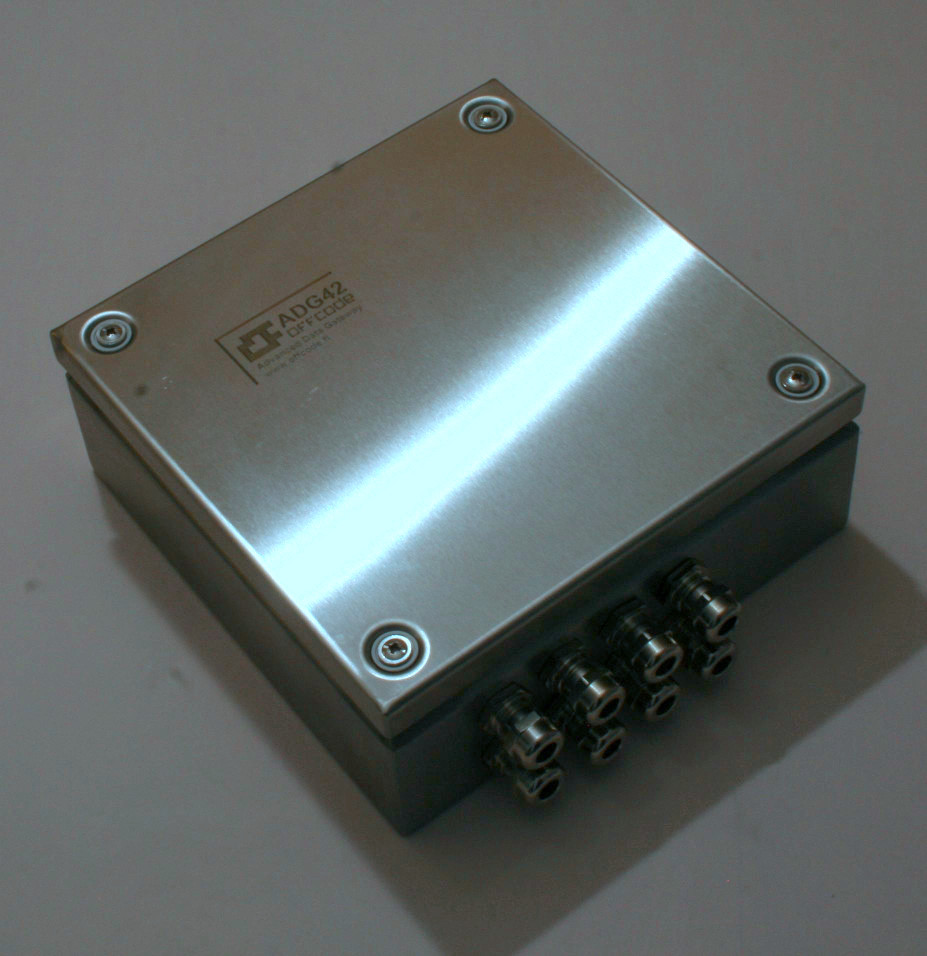

ADG42 is the Advanced Data Gateway to meet tomorrow's need for data acquisition. Based on the latest Debian Linux software and built-in 3G modem the system can be hooked up to the cloud services on the Internet with ease. The Gateway has numerous interfaces including serial connections (RS232, RS485) , CAN bus, Ethernet, USB and I/O ports.  Wireless sensors are supported as well. GPS is also built-in.

Whether you measure the temperature, pressure, moisture, oil quality, speed, tilt, location, climate or capture video – ADG42 proves to be a robust device for connecting these externals sensors. ADG42 is designed to offer industrial class acquisition and control in a wide range of environments. The electronical components are of industrial grade.

Cloud services are getting more and more popular and ADG42 fits perfectly in the Internet of Things (IoT) concept. We also have public reference systems which enable you to connect to the cloud with only little effort. This way you may store all your data online for real-time processing and handling.

ADG42 contains the state-of-the-art software update procedure which is supported on the fly remotely. Updates may be rolled back also if required. Extensive effort has been made to accomplish this goal. It's an important feature because it enables efficient use of resources as there's no need to physically interact with the devices.

 adg_camera

Some of the characteristics are:

- Operating voltage: 9-36V
- Standby Current: 10 mA
- Analog Input: 0-5V
- Analog Output Voltage: 0-5V
- Analog Output Current: up to 6mA
- Temperature Range: -40°C to 85°C
- Ethernet Interface: RJ45, 1Gbs
- Modem Type:  3G: HSDPA Cat.8 / HSUPA Cat.6, EDGE Class 12, GPRS Class 12
- GPS: Multi-GNSS engine with GLONASS, Galileo and QZSS

adg42



ADG42 is an enhanced version of ADN42 which has already been used in many industrial applications.
